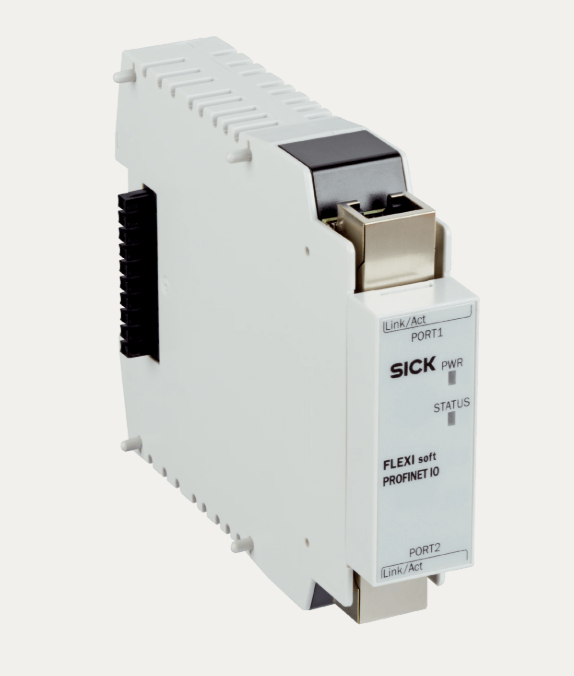

SICK - FX0-GPNT00000 (PN 1044074) Profinet Gateway
Module Gateway
Fieldbus, industrial network PROFINET, TCP/IP sockets
Configuration method Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer)
Interfaces
Fieldbus, industrial network PROFINET, TCP/IP sockets
Integrated Ethernet switch 3-port layer-2 managed switch with Auto-MDI-X for automatic detection of crossed Ethernet cable
Data transmission rate 10 Mbit/s, 10Base-T
100 Mbit/s, 100Base-T
autosensing
Connection type 2 x female connector, RJ-45
Electronics
Protection class III (EN 61140)
Voltage supply Via FLEXBUS+
Internal power consumption ≤ 3 W 1)
1) Via FLEXBUS+.
Mechanics
Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.6 mm
Weight 125 g (± 10 %)
