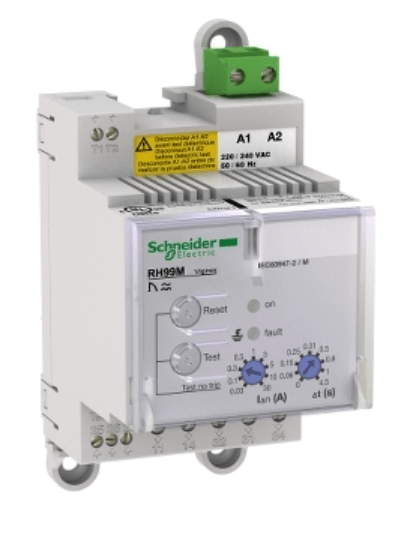

Schneider 56173 Residual current protection relay, VigiPacT RH99M, 30mA-30A, 220/240VAC 50/60Hz, DIN rail mounting.

Schneider 56173 Residual current protection relay, VigiPacT RH99M, 30mA-30A, 220/240VAC 50/60Hz, DIN rail mounting

Availability: 6-8 Weeks

Please contact us for a quote
Vendor: Schneider - Modicon
SKU: 56173

Secure and safe payment options.

Free Shipping Insurance for all deliveries.

2 year warranty on all new products.

Economical shipping rates

Description

Schneider 56173 Residual current protection relay, VigiPacT RH99M, 30mA-30A, 220/240VAC 50/60Hz, DIN rail mounting

  • VigiPacT relays ensure coordination with ComPacT circuit breakers (switch off within 40 ms)
  • Continuous monitoring of the power supply, the relay/toroid link and internal electronics
  • Reinforced insulation of VigiPacT relays (overvoltage category IV)
  • Access to settings protected by a lead-sealable cover or password
  • Enhanced sustainability with an environmental data program
    VigiPacT RH99M is a DIN rail mounting residual current protection relay. It protects against people direct or indirect contact, property fire hazards and motors. It measures the earth leakage current in an electrical installation via its associated toroid.
    It trips the associated circuit breaker when the set residual operation current is overrun. The operational supply voltage is 220/240VAC 50/60Hz. The operational supply voltage is 220/240VAC 50/60Hz. It is a type A earth-leakage protection class.
    The current sensitivity (IDn) is selectable with 9 thresholds from 30mA to 30A. The time delay (Dt) is selectable with 9 settings from instantaneous to 4.5s.
    The monitored distribution system voltage is up to 1000 VAC 50/60/400 Hz. It requires a local manual reset after a fault clearance. The monitored distribution system voltage is up to 1000VAC 50/60/400Hz. It is installed on a DIN-rail inside a switchboard and the protection degree is IP40. It must be associated with a compatible Schneider Electric type A toroid or rectangular sensor.
