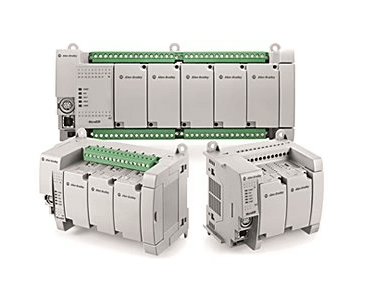

Rockwell - AB Micro 830 (2080-LC30*) Controllers
Vendor:
Rockwell - Allen Bradley
SKU:
2080LC3010QVB
This product page is provided for information only.
If you would like to get a price and availability, please Request a Quote.
Free Shipping Insurance for all deliveries.
2 year warranty on all new products.
Secure and safe payment options.
Rockwell - AB, Micro 830 Controllers (2080-LC30*) Controllers (Production DISCONTINUED by Rockwell. Surplus or Refurbished stock may be available)
Flexible communications and I/O capabilities with up to 5 Plug-Ins. Form factor based on number of I/O points embedded in the base: 10, 16, 24, or 48.
Controllers include built-in support for up to 3 axes of motion. As many as three Pulse Train Outputs (PTO). As many as six High-Speed Counter inputs (HSC). 100KHz speed of PTO and HSC available on 24V DC models. Single axis moves.
Supported via PLCopen Motion instructions. Home, Stop, MoveRelative, MoveAbsolute, MoveVelocityEmbedded Communications. USB programming. Non-isolated serial port (RS232/485)
Various Model Details:
2080-LC30-10QVB, 6DI 4DO SINK RS232/485 24V DC
2080-LC30-10QWB, 6DI 4DO RELAY RS232/485 24V DC
2080-LC30-16AWB, 10DI 6DO RELAY RS232/485 120V AC
2080-LC30-16QVB, 10DI 6DO SINK RS232/485 24V DC
2080-LC30-16QWB, 10DI 6DO RELAY RS232/485 24V DC
2080-LC30-24QBB, 14DI 10DO SOURCE RS232/485 24V DC
2080-LC30-24QVB, 14DI 10DO SINK RS232/485 24V DC
2080-LC30-24QWB, 14DI 10DO RELAY RS232/485 24V DC
2080-LC30-48AWB, 28DI 20DO RELAY RS232/485 120V AC
2080-LC30-48QBB, 28DI 20DO SOURCE RS232/485 24V DC
2080-LC30-48QVB, 28DI 20DO SINK RS232/485 24V DC
2080-LC30-48QWB, 28DI 20DO RELAY RS232/485 24VDC
