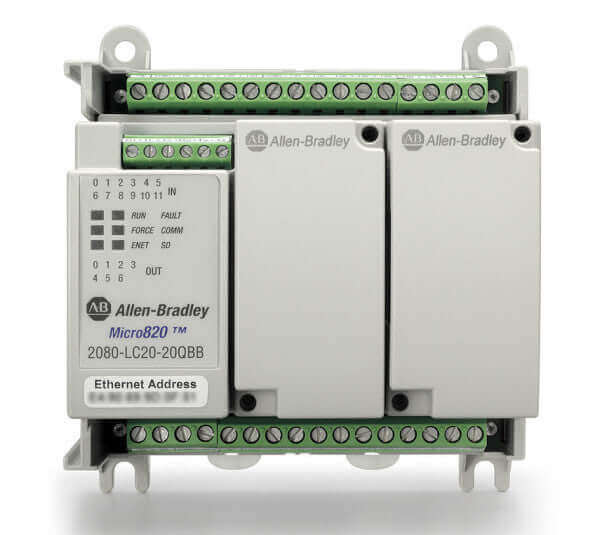

Rockwell 2080-LC20-20QBB Micro820 PLC Controller with 24VDC inputs, analog outputs, and embedded Ethernet port
Rockwell 2080-LC20-20QBB Micro820 PLC Controller with 12 24VDC Inputs, 4 configurable analog inputs, 7 24VDC Outputs, and Embedded Ethernet Port
Micro800 Catalog Number Details for Rockwell PLC controllers with bulletin numbers, power supply options, output types, and input types.

Rockwell 2080-LC20-20QBB - Micro820 PLC Controller, 12 24VDC Inputs, 4 configurable analog input with thermistor voltage reference out , 7 24VDC Output, 1 Analog Output, Embedded Ethernet Port

SKU: 2080LC2020QBB

This product page is provided for information only.

If you would like to get a price and availability, please Request a Quote.

Free Shipping Insurance for all deliveries.

2 year warranty on all new products.

Secure and safe payment options.

Rockwell 2080-LC20-20QBB - Micro820 PLC Controller, 12 24VDC Inputs, 4 configurable analog input with thermistor voltage reference out , 7 24VDC Output, 1 Analog Output, Embedded Ethernet Port, Embedded RTC, MicroSD Card support, 2 Plug-In slots

As one of the smaller controllers in the Rockwell Micro800 family, the Micro820 controller comes as a 20-point form factor, with six catalogs available for selection. The Micro820 controller is designed for smaller standalone machines and remote automation projects.
It has the following features:
• Two plug-in module slots
• microSD card slot for project backup and restore, datalogging and recipe
• Embedded 10/100 Base-t Ethernet port(RJ-45)
• Support for Remote LCD module (2080-REMLCD) for configuration
• Embedded non-isolated RS232/RS485 combo serial port
• Modbus RTU protocol (serial port)
• Modbus TCP support
• EtherNet/IP™ support
• CIP™ Serial support

MORE INFORMATION

Technical Data

The Allen Bradley Rockwell produced Micro 820 Controller is available in various models, consisting of various I/O arrangements. The controller also accommodates any class 2 rated 24V DC output power supply that meets minimum specifications such as the optional Micro800 power supply. This family of controllers can be programmed by using the free Connected Components Workbench software or can connect to a remote LCD (2080-REMLCD) for configuring. The Micro820 Controller is designed primarily for stand alone machines and remote automation projects. Despite being small in size, the Micro 820 is full of features including 20-point embedded I/O, can accommodate up to two plug-in modules, has status indicators, a real time clock, embedded Ethernet, RS232/485 and USB ports as well as a micro-SD slot which proves invaluable for program backups and restores, recipe functions and data logging.
