Rockwell 1734-OE2V POINT I/O 2-Channel Analog Voltage Output Module featuring 2 single-ended outputs, 0-10V, ±10V signal range
Rockwell 1734-OE2V POINT I/O 2-Channel Analog Voltage Output Module featuring 2 single-ended outputs, 0-10V, ±10V signal range

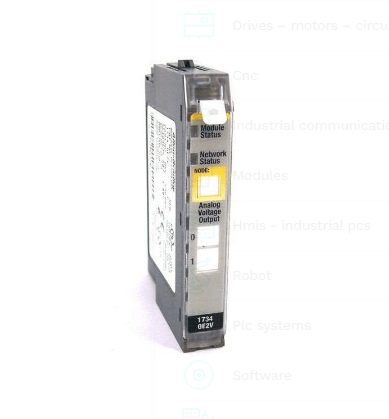

Rockwell 1734-OE2V POINT I/O 2-Channel Analog Voltage Output Module

Vendor: Rockwell - Allen Bradley
SKU: 1734OE2V

This product page is provided for information only.

If you would like to get a price and availability, please Request a Quote.

Free Shipping Insurance for all deliveries.

2 year warranty on all new products.

Secure and safe payment options.

Description

Rockwell 1734-OE2V POINT I/O 2-Channel Analog Voltage Output Module; 2 single-ended Outputs; Signal Range: 0-10V, ±10V; Output Resolution: 14 bits (13 + sign), 1.28 mV/cnt in unipolar or bipolar mode; Absolute Accuracy: 0.1% Full Scale @ 25 °C; Step Response to 63% of FS: 20 microseconds; Output Conversion Rate: 20 microseconds; PointBus Current (mA): 75 mA; External DC Supply Current, Nom: 35 mA @ 24V DC; Power Dissipation, Max: 1.0 W @ 28.8V DC

MORE INFORMATION

Technical Data
