Emerson - Rosemount 4051S1A4TG22NA05NA1AM6BEY2T1P1DOQ4Q8E1+0306RT22BA11 Pressure Transmitter with integral 306 2 Valve Manifold

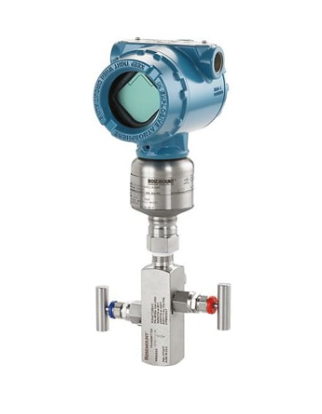

Emerson - Rosemount Pressure Transmitter with integral 306 2-Valve Manifold

Product Details
4051S1A4TG22NA05NA1AM6BEY2T1P1DOQ4Q8E1
Measurement functionality
1: Pressure, level, or flow (square root output)
Diagnostic functionality
A: Device and Loop Integrity diagnostics
Performance class
4: Classic: 0.035% span accuracy, 150:1 rangedown, 20-year stability
Pressure measurement | Module Type
TG: Gage pressure | In-line
Pressure range
2: -14.7 to 150 psig (-1,01 to 10,34 bar)
Isolating diaphragm material
2: 316L SST
Process temperature measurement
N: No process temperature measurement input
Process connection type
A: Integral manifold
Process connection style | Size | Valve configuration
05: Alternative Rosemount manifold (specified separately)
Process connection material | Flange body | Drain vent valve (seat / stem)
N: Specified in Separate Model Number
Transmitter housing material
A: Aluminum
Conduit / cable threads
1: 1/2-14 NPT
Transmitter output
A: 4-20 mA with digital signal based on HART protocol
Display type
M6: Graphical LCD display with quick service buttons
Bracket Type l Bracket Material l Bolt Material
BE: Inline Bracket l 316 SST l 316 SST
Tagging and fastener material
Y2: 316 SST nameplate, top tag, wire-on tag, and fasteners
Transient protection
T1: Transient terminal block
Pressure testing
P1: Hydrostatic testing with certificate
Conduit plug
DO: 316 SST conduit plug
Calibration certification
Q4: Calibration certificate
Material traceability
Q8: Material traceability certification per EN 10204 3.1
Product certifications
E1: ATEX Flameproof, Dust

0306RT22BA11
Manufacturer
R: Rosemount Inc.
Manifold Style
T: Threaded
Manifold Type
2: 2-Valve
Materials of Construction
2: 316/316L SST
Process Connection Style
BA: 1/2-14 female ANPT Process Connection for Inline Transmitter
Packing Material
1: PTFE
Valve Seat
1: Integral
