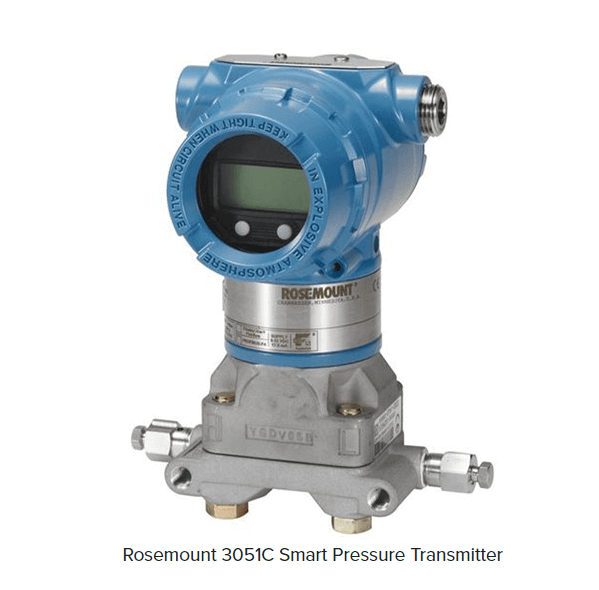

Emerson - Rosemount 3051CG1A02B1BS5D4M5Q4+0305RC22B11 3051C Coplanar Pressure Transmitter Range: –25 to 25 inH2O (–62,16 to 62,16 mbar) complete with Rosemount 305 Integral 2-Valve Manifold fitted

SKU: 3051CG1A02B1BS5D4M5Q4+0305RC22B11

This product page is provided for information only. If you would like to get a price and availability, please Request a Quote.

Free Shipping Insurance for all deliveries.

2 year warranty on all new products.

Secure and safe payment options.

3051CG1A02B1BS5D4M5Q4+0305RC22B11

Emerson - Rosemount 3051C Coplanar Pressure Transmitters are the industry standard for differential, gage, and absolute pressure measurement. The coplanar platform enables seamless integration with manifolds, flow, and level solutions.

Capabilities include:
■ The Loop Integrity Diagnostic continuously monitors the electrical loop to detect changes that compromise the integrity of the transmitted 4-20 mA output signal (Option Code DA0).
■ LOI with straightforward menus and built-in configuration buttons (option code M4).
■ Safety certification (option code QT).

Includes a Rosemount 305 Integral 2-Valve Manifold

3051C = Pressure Transmitter (Coplaner Type)

G = Measurement Type: Gage
1 = Pressure Upper Range Limit: CG:-25 to 25inH2O (-62.2 to 62.2 mbar)
A = Transmitter Output: 4-20 mA with Digital Signal Based on HART Protocol
0 = Materials of Construction: Alternate Flange
2 = Isolating Diaphragm: 316L SST
B = O-Ring: Graphite-filled PTFE
1 = Sensor Fill Fluid: Silicone
B = Housing/Conduit: Polyurethane-covered Aluminum M20 x 1.5 (CM20)
S5 = Assemble to Rosemount 305 Integral Manifold
M5 = Display Type: LCD Display
Q4 = Calibration Certificate
D4 = Configuration Buttons: Analog Zero and Span


0305 = Integral Manifold
R = Manufacturer: Rosemount Inc
C = Manifold Style: Coplanar
2 = Manifold Type: 2-Valve
2 = Materials of Construction: 316 SST
B = Process Connection: 1/2-14 NPT female
1 = Packing Material: Teflon
1 = Valve Seat: Integral
